Home     Boegschroef Bowthruster Raboesch 33mm nr. 108-30 Pakket
Boegschroef Bowthruster Raboesch 33mm nr. 108-30 Pakket

Boegschroef Bowthruster Raboesch 33mm nr. 108-30 Pakket


Boegschroef  Raboesch,
Ø 33 mm uitwendig,
Nominaal voltage: 7,2 Volts. 6-12V
Met 2x 3blads 29mm schroeven.



108.90

€ 97.90


UITVERKOCHT

RABOESCH | Artikelcode: 108-30

Boegschroef Bowthruster Raboesch 33mm  nr. 108-30  Pakket


  • Productinformatie
  • 6V of 7,2V of 12V motor voor deze boegschroef! + 5blad

Boegschroef Bowthruster Raboesch 33mm  nr. 108-30

Boegschroef  Raboesch,
Ø 33 mm uitwendig,
Nominaal voltage: 7,2 Volts.
Met 2x 3blads 29mm schroeven.

Extra verlengbuis is nr 108-32

These very powerful bow thrusters are supplied fully mounted with a type 400/7.2V electric motor.
The propulsion is provided via an angular gear through two 3-bladed brass props to ensure maximum thrust even for large models.
Its design is very robust and requires almost no maintenance.
The housing and the jet nozzles are made of ABS.
3 gaskets (O- and G-Rings) ensures absolut water tightness.

Technical Specifications:
• Electric Motor
Operational Current 6-7.2V
Idle Revs 17,000 RPM (at 7.2V)
Idle Power Consumption 0.5A
Efficiency 78%

• Thruster
Diameter inner 30 / outer 33 mm
Length min. 48 mm (casing)
Max. width 148 mm

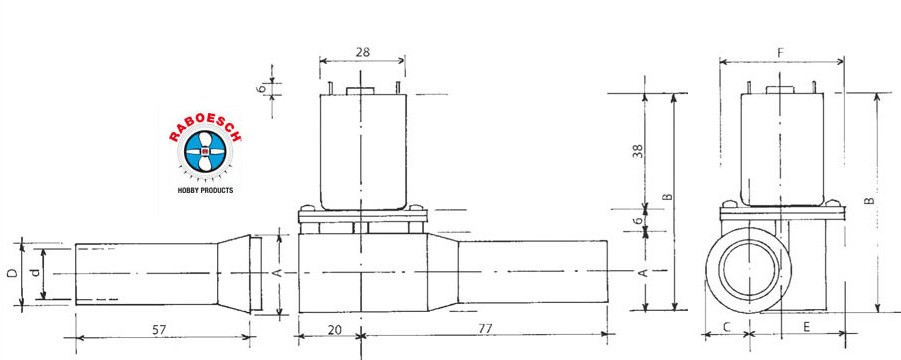

Please see drawing below for dimensions in detail.

A 33 mm
B 80 mm
C 16.5 mm
d 30 mm
D 33 mm
E 20.5 mm
F 41 mm
