Savox SH-0254 Micro Digital 3,9KG@6V (HELI & PARKFLY) Envelop

Savox SH-0254 Micro Digital 3,9KG@6V (HELI & PARKFLY) Envelop



Tags


€ 20.95


Op voorraad


Artikelcode: SH-0254

Savox SH-0254 Micro Digital 3,9KG@6V (HELI & PARKFLY)  Envelop


  • Productinformatie

Detail info
This is the Savox SH-0254 High Torque Micro Digital Servo.

Features:

- Over-spec refined design out performs ordinary micro size servo.
- The metal case design looks awesome and allows for cooler and smoother operating temps.
- Metal gears form a solid framework for precise controls and operation.
- Strict production and quality control of plastic components
- Our servos are totally green – from materials to production, these servos are environmentally friendly.
- Ideal for CCPM and Rudder on 450 class heli's and park flyer airplanes.

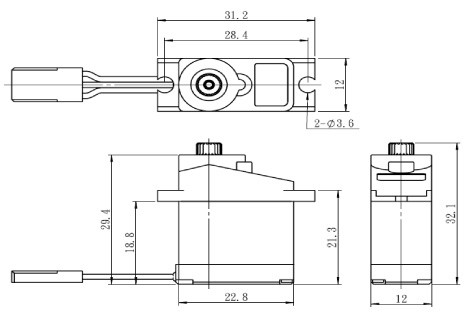

       Technische gegevens
Ball Beared                Ball Beared
Brandname                Savöx
Connector type                JR
Gear Material                Metal & POM HD Gears
Height (mm)                29.4 mm
Input Voltage (V)        4.8V - 6.0V
Length (mm)                22.8 mm
Motor Type                DC Motor
Servo Case                Aluminium & Plastic
Servo Power - Torque Kg/cm        < 5 Kg/cm
Servo Speed 60°/sec        0.10 - 0.15 Sec/60°
Servo Technology        Digital Low Voltage
Servo Type / Size        Micro
Speed 60°/Sec @ 6.0V        0.13 Sec/60°
Spline size                21T Spline
Torque kg/cm @ 6.0V        3,9 Kg/cm
Weight (g)                15.8 g
Width (mm)                12.0 mm
