HITEC HS-485HB Servo analoog # 112485

Envelop

HITEC HS-485HB Servo analoog  # 112485
25.95 *Prijzen zijn inclusief btw
Fabrikant HITEC
Artikelcode112485
669962334853
0 ster(ren) met 0 review(s) Schrijf een review
Op voorraad
Control System: +Pulse Width Control 1500usec Neutral
Required Pulse: 3-5 Volt Peak to Peak Square Wave
Operating Voltage: 4.8-6.0 Volts
Operating Temperature Range: -20 to +60 Degree C
Operating Speed (4.8V): 0.22sec/60° at no load
Operating Speed (6.0V): 0.18sec/60° at no load
Stall Torque (4.8V): 66.6 oz/in. (4.8kg.cm)
Stall Torque (6.0V): 83.3 oz/in. (6.0kg.cm)
Operating Angle: 45 Deg. one side pulse traveling 400usec
360 Modifiable: Yes
Direction: Clockwise/Pulse Traveling 1500 to 1900usec
Current Drain (4.8V): 8mA/idle and 150mA no load operating
Current Drain (6.0V): 8.8mA/idle and 180mA no load operating
Dead Band Width: 8usec
Motor Type: 3 Pole Ferrite Motor
Potentiometer Drive: Indirect Drive
Bearing Type: Top Ball Bearing, Lower Bushing
Gear Type: Karbonite Gears
Connector Wire Length: 11.81" (300mm)

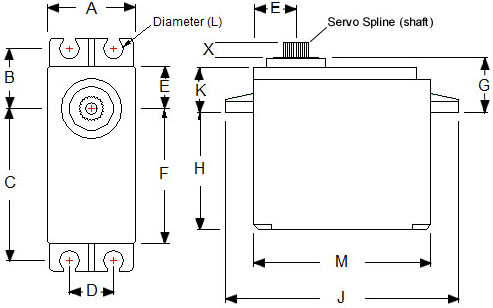

Dimensions: See Schematic
Weight: 1.59oz (45g)




A = .780” (19.82mm)
B = .547” (13.9mm)
C = 1.352” (34.35mm)
D = .394” (10mm)
E = .394” (10mm)
F = 1.181” (30mm)
G = .472” (12mm)
H = 1.102” (28mm)
J = 2.09” (53.1mm)
K = .384” (9.75mm)
L = .174” (4.42mm)
M = 1.575” (40mm)
X = .126” (3.2mm)
