Jeti Satelliet RSAT 900 Mhz Duplex EX 2,4GHz, JDEX-RS-900

Envelop Voor R10, R12, R14, R18 Reciever

Jeti Satelliet RSAT 900 Mhz  Duplex EX 2,4GHz, JDEX-RS-900
Jeti Satelliet RSAT 900 Mhz  Duplex EX 2,4GHz, JDEX-RS-900
Jeti Satelliet RSAT 900 Mhz  Duplex EX 2,4GHz, JDEX-RS-900
84.90 *Prijzen zijn inclusief btw
Fabrikant JETI
ArtikelcodeJDEX-RS-900
8595245911935
0 ster(ren) met 0 review(s) Schrijf een review
Op voorraad

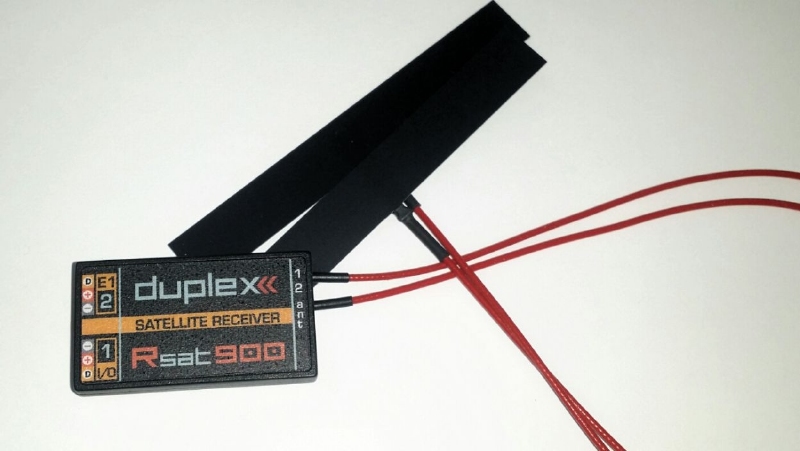

DUPLEX 2.4EX Receiver RSAT 900Mhz
- especialy for the 900Mhz Back Up System of Jeti Duplex DC-24 and DS-24 transmitter
- Integrated expander for multiple sensors
- Supported protocols: PPM, EXBUS, EX, UDI
- Programmable features of the Outpins
- Compact dimensions
- 32 bit processor
- Full range
- Special flat antennas for optimal range
- Programmable via the JETIBOX and wirelessly via the duplex DC / DS transmitter
- connection samples: see "Downloads"
Technical specifications:
Weight [g]: 11
Dimensions [mm]: 40 x 22 x 7
Channels: upto 24 as an additional backup receiver
Operating only at 2.4 GHz: No
Temperature range [° C]: -10 ... 85
compatible protocols: DUPLEX EX bus, UDI, PPM
Antenna cable length [mm]: 2 x 280
Flatantenna [mm]: 80 x 10 x 1,5
Voltage range [V]: 3.2 to 8.4
Current [mA]: 30
Output power [dBm] 14
Receiver sensitivity [dBm] -110
Frequency: 863 - 870Mhz (for EU use)
