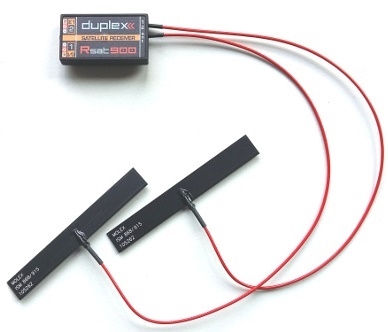

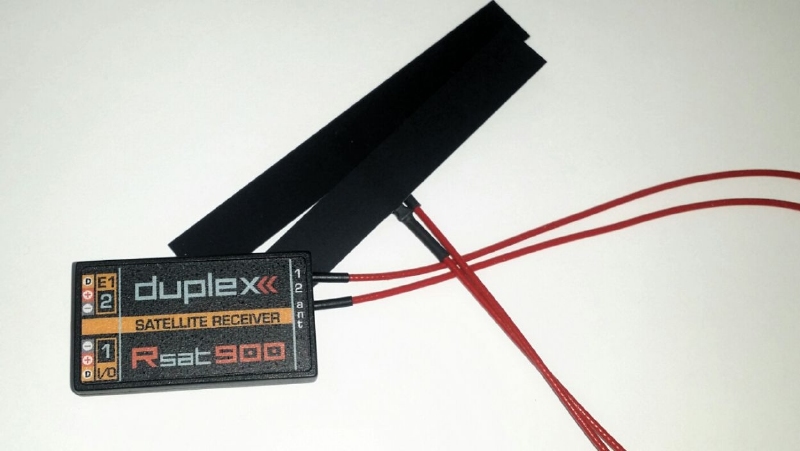

Jeti Satelliet RSAT 900 Mhz Duplex EX 2,4GHz, JDEX-RS-900

Envelop Voor R10, R12, R14, R18 Reciever

€ 84.90 *Prijzen zijn inclusief btw

Fabrikant: JETI
Artikelcode: JDEX-RS-900

0 ster(ren) met 0 review(s) Schrijf een review

Op voorraad

Aantal

DUPLEX 2.4EX Receiver RSAT 900Mhz

- especialy for the 900Mhz Back Up System of Jeti Duplex DC-24 and DS-24 transmitter

- Integrated expander for multiple sensors

- Supported protocols: PPM, EXBUS, EX, UDI

- Programmable features of the Outpins

- Compact dimensions

- 32 bit processor

- Full range

- Special flat antennas for optimal range

- Programmable via the JETIBOX and wirelessly via the duplex DC / DS transmitter

- connection samples: see "Downloads"

Technical specifications:

Weight [g]: 11

Dimensions [mm]: 40 x 22 x 7

Channels: upto 24 as an additional backup receiver

Operating only at 2.4 GHz: No

Temperature range [° C]: -10 ... 85

compatible protocols: DUPLEX EX bus, UDI, PPM

Antenna cable length [mm]: 2 x 280

Flatantenna [mm]: 80 x 10 x 1,5

Voltage range [V]: 3.2 to 8.4

Current [mA]: 30

Output power [dBm] 14

Receiver sensitivity [dBm] -110

Frequency: 863 - 870Mhz (for EU use)
