FrSky FSH-01 Sensor Hub for 2-way Telemetry

Envelop

FSH-01
FrSky FSH-01 Sensor Hub for 2-way Telemetry
FrSky FSH-01 Sensor Hub for 2-way Telemetry
FrSky FSH-01 Sensor Hub for 2-way Telemetry
23.95 *Prijzen zijn inclusief btw
Fabrikant FRSKY
ArtikelcodeFSH-01
Op voorraad

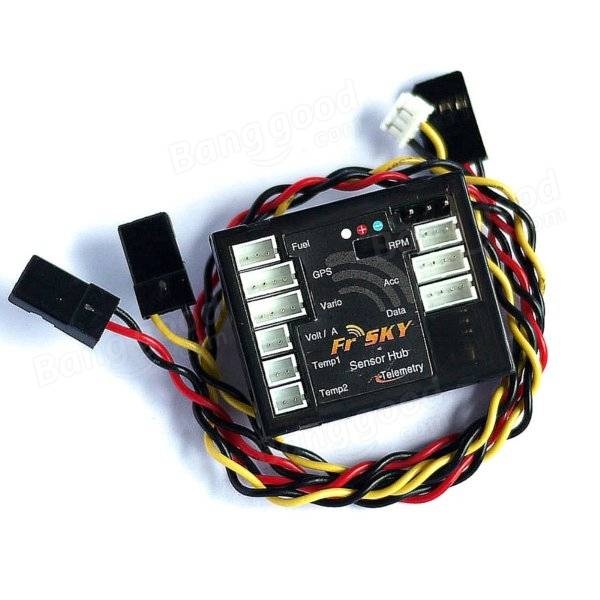

The FSH-01 Sensor Hub is recommended to connect to the digital side port (G, TX, RX) of FrSky telemetry receiver and connect sensors with the provided cable.
It serves as an information collecting and processing center.
You can then monitor the data via the LCD screen (FLD-02 for mudule based steups) or on the Taranis.

Dimension: 37 x 30 x 8mm
Operating Voltage Range: 4~10V
Operating Temperature Range: -20~80℃

Features:
Firmware upgradable

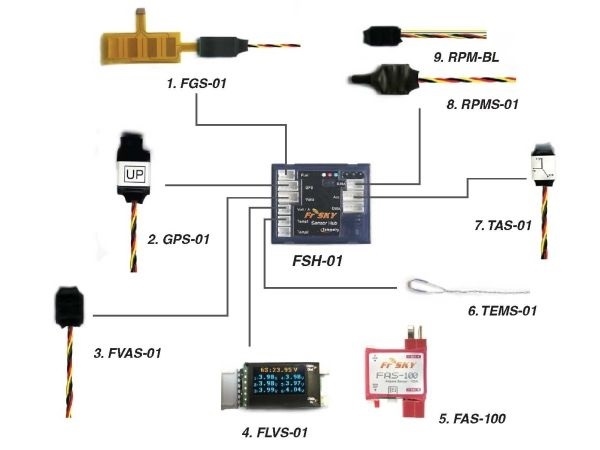

Hub Ports:
Fuel Gauge Sensor
GPS
Variometer Sensor
Lipo Voltage Sensor
Temperature Sensor
Power Supply
RPM Sensor
Triaxial Acceleration Sensor
Data - use provided cable to connect to reciever digital side port (G, TX, RX)


FrSKY Sensors: (Be sure to check out all the great sensors in our sensor category. Click Here.)

Different sensors monitor different data, such as fuel level, speed, longitude, latitude, altitude, temperature, RPM, acceleration, etc.
Please note that many of the sensors for the hub are no longer available.
We have been told that some other makes of sensors work very well, you just need to put the correct plug on them.

Specificaties

Merken FRSKY
