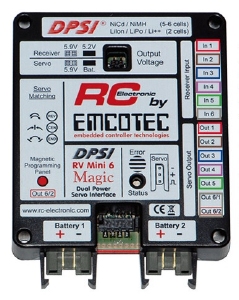

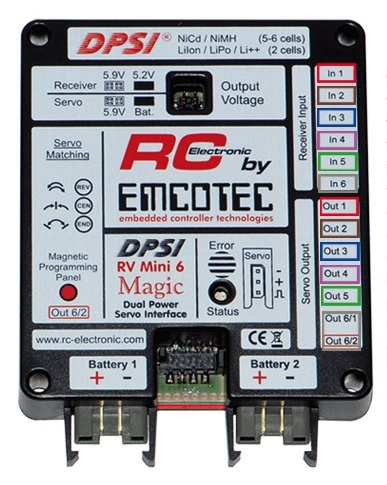

EMCOTEC DPSI RV Mini 6 MAGIC  - Akkuweiche  - Product description
Fully redundant power and servo management system of the latest generation.

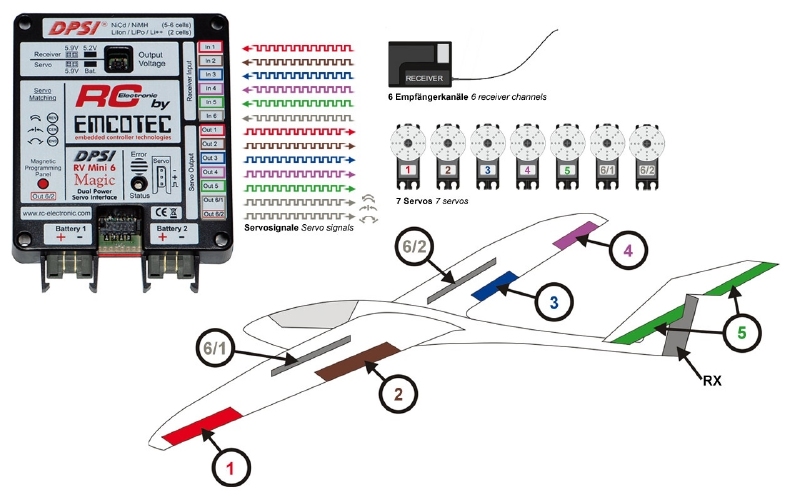

Current distribution of 6 receiver channels to 7 servos (additional servos directly connectable to the receiver).
Up to 50A peak current load for optimal servo power. Failsafe electronical power switches with the proven pin switch actuator - the switching is not influenced by a micro controller (CSHC).
Regulated output voltage for the use of all battery types.
DVS - Selectable Dual Voltage Supply for discrete receiver and servo voltage provisioning: Receiver voltage switchable between 5.2V and 5.9V, servo voltage switchable between 5.9V and 7.4V.
LowDropOut regulators for minimum dissipation loss and maximum power. Protection of the receiver against the so-called "dynamo effect".
APP - Advanced Push-Pull servo pulse amplification - ideal for 2.4GHz applications. HFIB - High Frequency Interference Blocking rejects interference from long servo cables.
IVM - Intelligent Voltage Monitoring with integrated status and alarm display. Easily programmable for all battery types: NiCd, NiMH, Li-Ion, Li-Po or LiFePo4.
Optical and acoustical error indication . High grade ABS housing.

Delivery  DPSI RV Mini 6 Magic battery , 5 patch cables, operating instructions.

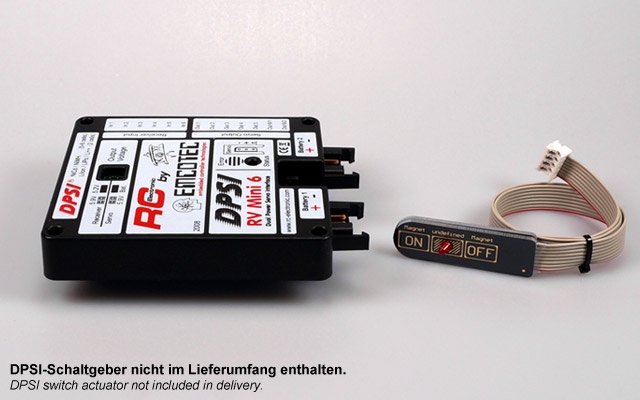

For switching on and off the DPSI RV Mini System an additionally available DPSI switch actuator is necessary (see "Accessories" tab).
The DPSI switch actuator is not included within delivery contents.

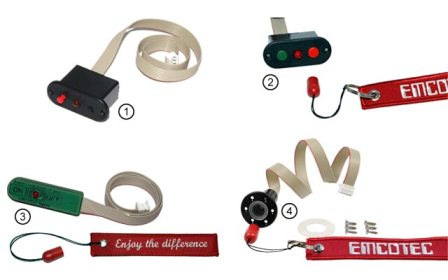

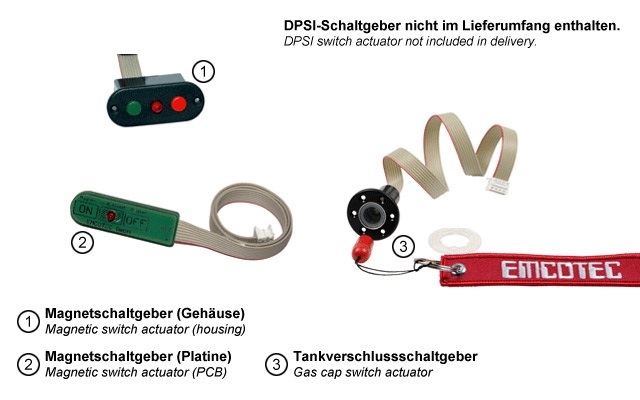

The following DPSI switch actuators are available:

DPSI pin switch actuator
DPSI magnetic switch actuator (housing)
DPSI magnetic switch actuator (PCB)
DPSI gas cap switch actuator
DPSI remote switch actuator (Duplex)*

  • Power sources        5, 6, (7)-zellige NiCd / NiMH Zellen, 2-zellige Lithium-Ion-Akkus, Lithium-Polymer-Akkus, LiFePo-Akkus
  • Operating voltage range        5,0V bis 13V
  • Nominal input voltage        6,0V bis 8,4V
  • Quiescent current (switched off)        ca. 1µA pro Akku
  • Quiescent current (switched on)        ca. 55mA
  • Max. permanent current @ 5.9V        5A
  • Max. peak current @ 5.9V        50A
  • Umgebungsbedingungen        -10°C bis +50°C
  • Zulässiger Temperaturbereich        -25°C bis +85°C
  • CE-Prüfung        gemäß 2004/108/EC
  • Dimensions        77 x 99 x 15,8mm
  • Weight        ca. 105g
  • Drop-Out-Verluste @ 4A        0,4V
  • LCL-Filterung (EMI)        für jeden einzelnen Servoausgang
  • Störsignalunterdrückung bei 35MHz        -20dB bei 35MHz, -34dB bei 100MHz
  • Schraubdurchmesser für die Befestigung        4 x 4,2mm
  • Lochabstand für die Befestigung        78,7 x 67,7mm

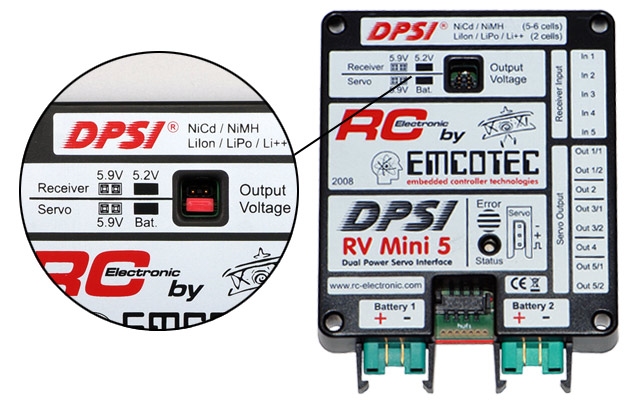

  • Ausgangsspannung Empfänger        5,2V oder 5,9V per Jumper einstellbar
  • Ausgangsspannung Servos        5,9V oder volle Akkuspannung per Jumper einstellbar
Application scope
Anzahl Servos        bis zu 10 Servos

DPSI RV Mini 6  - Additional informations
ATTENTION: because of customer demands you are able to select the switch actuator you want!
Please select the fitting unit.
ATTENTION: The switching off process of DPSI works with a hall effect sensor.
Hall effect sensors can be influenced by magnet fields.
It is possible that the DPSI switches off when exposed to a very strong magent field (i.g. electric drive).
Current-carrying cables generate a magnet field.
So please run all cables which are carrying a high current (>100A) with a distance of at least 3cm (1.18in) from the switch acutator.
