Visaton 2231 Full Range FRS5 = 8 Ohm 10Watt

Pakket Soundmodulen SMT, SMX und SM7 bei 12 V sowie SM3 bei 7,2V

€ 12.95 *Prijzen zijn inclusief btw

Fabrikant: VISATON
Artikelcode: VI2231

0 ster(ren) met 0 review(s) Schrijf een review

Op voorraad

Aantal

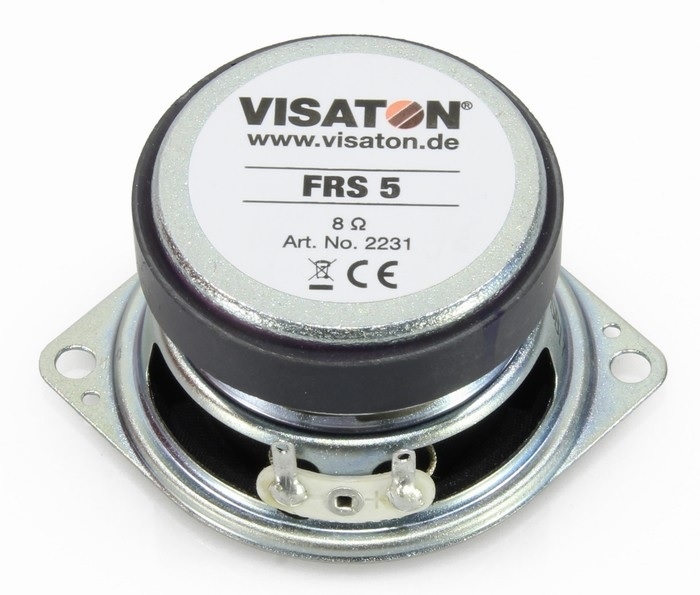

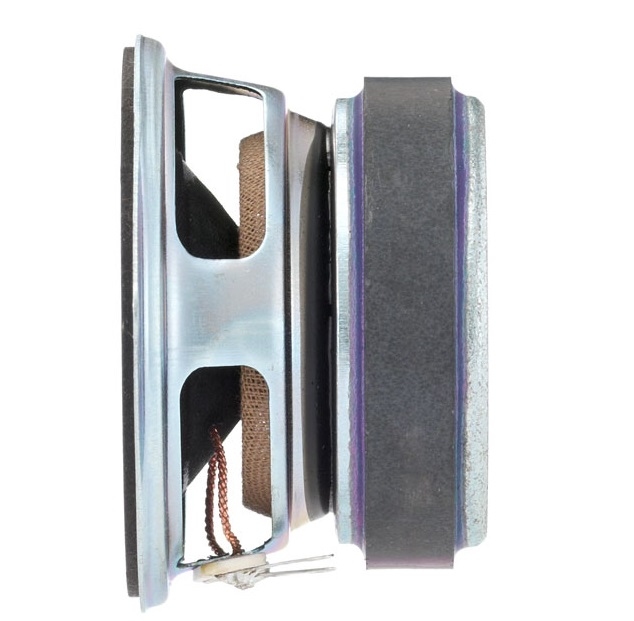

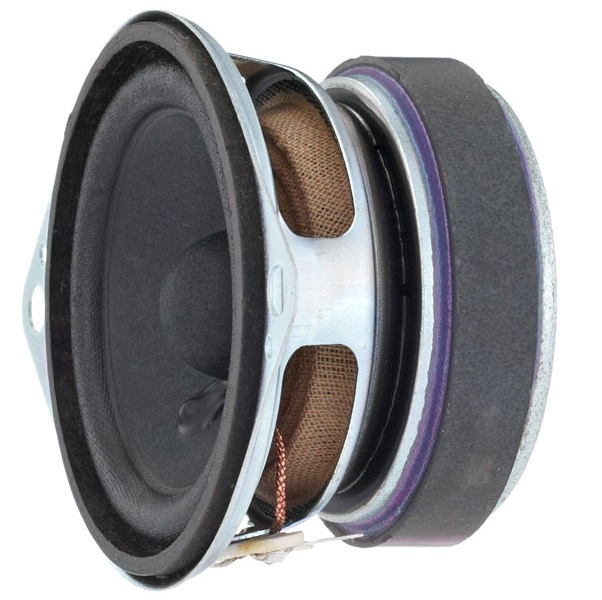

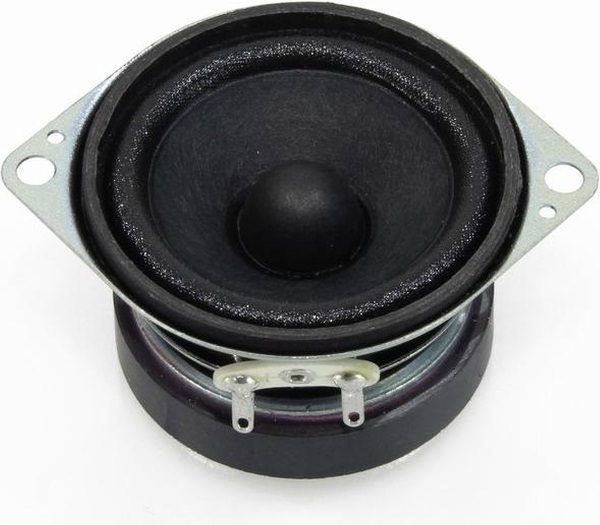

5cm ( 2" ) Breedband Luidspreker - Visaton No. 2231 - FRS 5 - 8 Ohm ( NIET Afgeschermd )

Soundmodulen SMT, SMX und SM7 bei 12 V sowie SM3 bei 7.2V en USM-RC

5 cm (2") full-range driver

with a special basket design featuring two fixing lugs.

Suitable as a medium-range driver in speaker systems for HiFi and background music and for 100 V PA systems.

Thanks to the slim construction, also suitable as a control speaker in electronic devices.

Typical applications:
Very narrow network column speakers

Control speaker for electronic devices

Model construction

Electronic musical instruments

Technical Data:
Rated power	4 W
Maximum power	10 W
Nominal impedance Z	8 Ohm

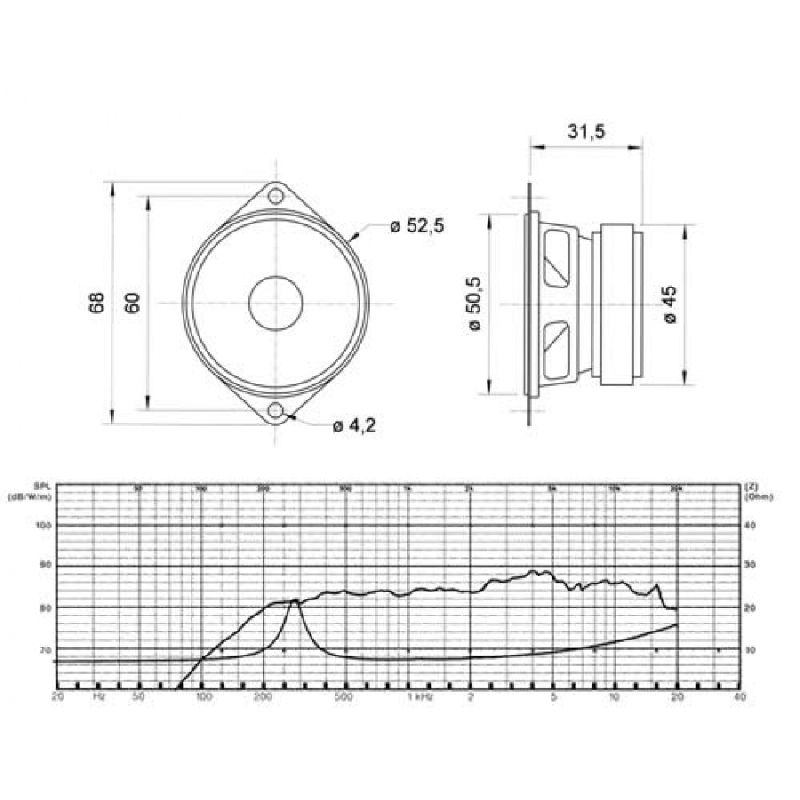

Frequency response	150–20000 Hz
Mean sound pressure level	84 dB (1 W/1 m)
Opening angle (-6 dB)	180°/4000 Hz
Excursion limit	+/-2 mm
Resonance frequency fs	270 Hz
Voice coil diameter	14 mm
Height of winding	3,7mm

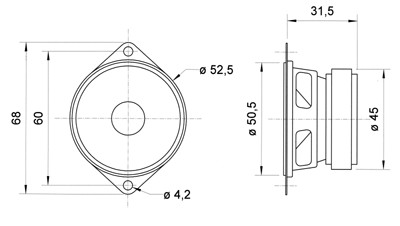

Cutout diameter	46 mm
Net weight	0,126 kg
D.C. resistance Rdc	7,2 Ohm
Mechanical Q factor Qms	3,19
Electrical Q factor Qes	1,81
Total Q factor Qts 1,15 Equivalent volume Vas 0,16 l
Effective piston area Sd	12 cm²
Dynamically moved mass Mms Force factor Bxl Inductance of the voice coil L Temperature range	0,5 g 1,6 Tm 0,2 mH −25 ... 70 °C
