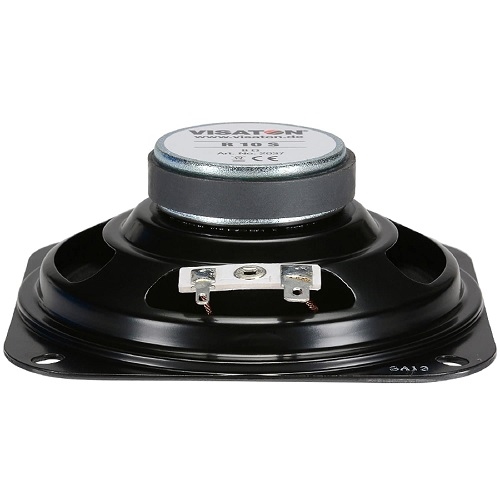

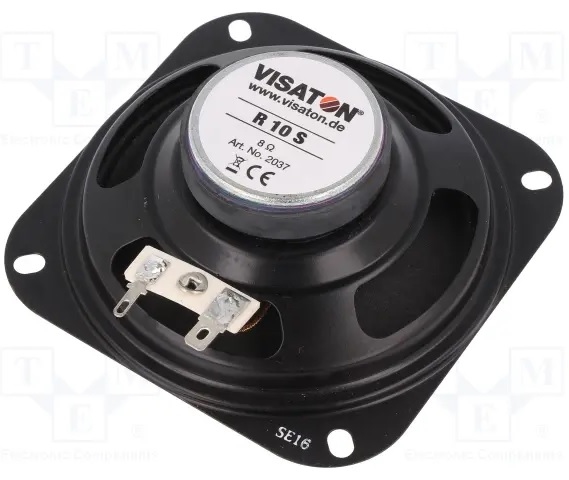

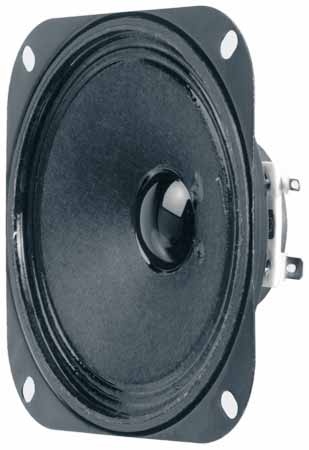

Visaton Full-Range R10S-8 Ohm 30Watt nr. 2037

10cm ( 4" ) Breedband Luidspreker - Visaton No. 2037 - R 10 S - 8 Ohm
10 cm (4") fullrange speaker with high efficiency and balanced frequency response. Especially suitable as control speaker for electronic devices.

Typical applications:
- Control speakers for electronic devices
- Ceiling- mounted speakers in railway carriages and busses
- Model construction


Technical Data:
Rated power 20 Watt
Maximum power 30 Watt
Nominal impedance 8 Ohm
Frequency response (-10 dB) 100 - 13000 Hz
Mean sound pressure level 90 dB (1W/1m)
Resonance frequency fs 160 Hz
Magnetic induction 0,95 Tesla
Magnetic flux 135 µ Weber
Height of front pole-plate 3 mm
Voice coil diameter 1,5 cm
Height of winding 0,4 cm

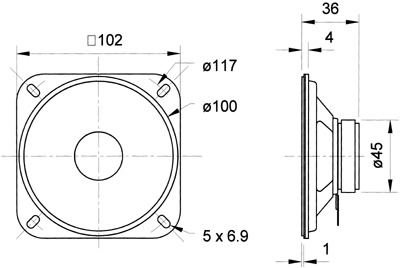

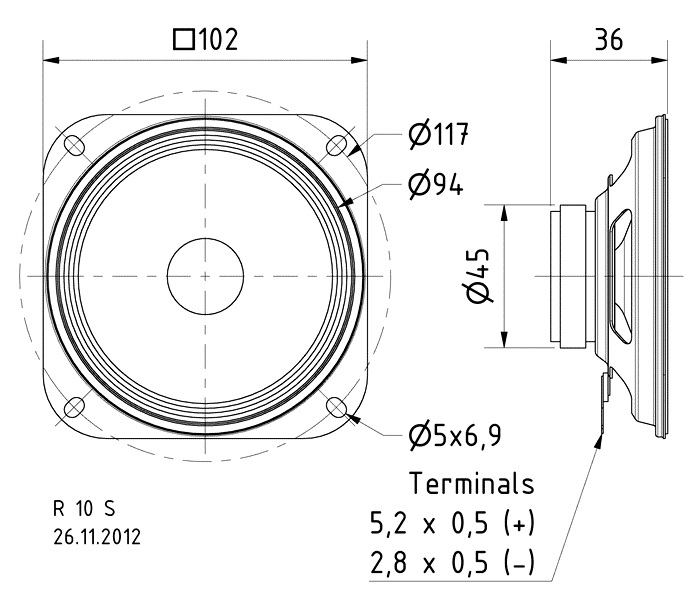

Cutout diameter 9,3 cm
Net weight 0,16 kg
D.C. resistance Rdc 7,4 Ohm
Mechanical Q factor Qms 7,25
Electrical Q factor Qes 3,34
Total Q factor Qts 2,29
Equivalent volume Vas 2,3 l
Effective piston area Sd 56 cm2
Dynamically moved mass Mms 2 g
Force factor Bxl 2,13 T · m
Inductance of the voice coil L 0,48 mH
