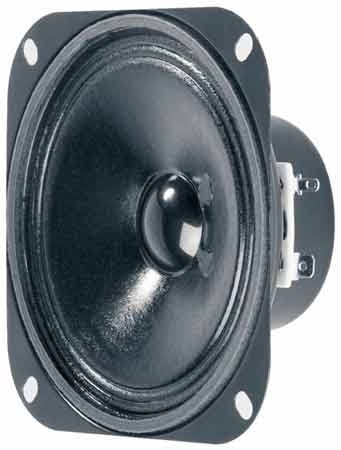

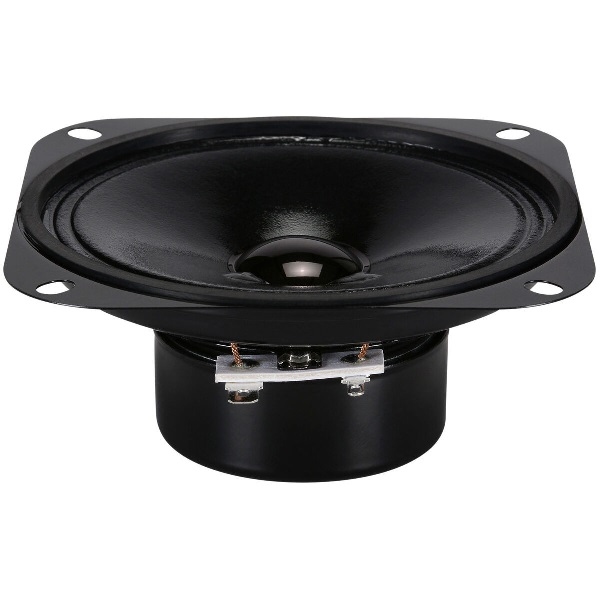

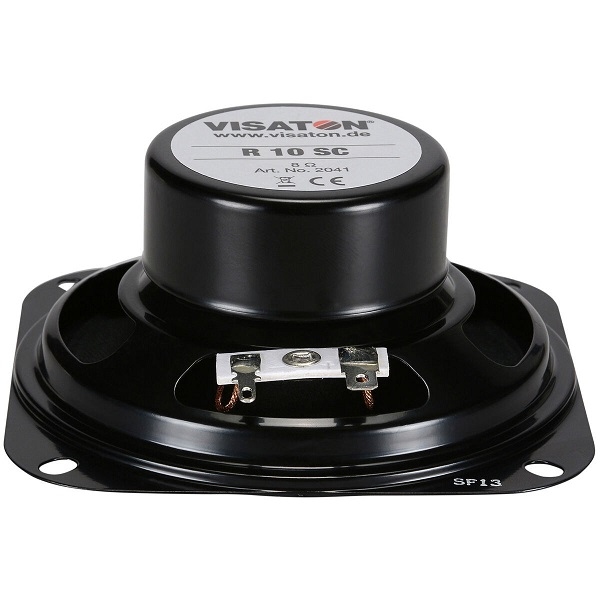

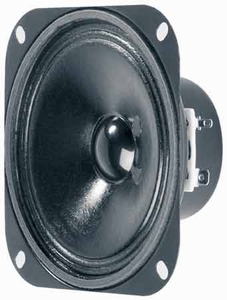

Visaton R10SC Full-Range -8 Ohm 30Watt nr. 2041

10cm ( 4" ) Breedband Luidspreker - Visaton No. 2041 - R 10 SC - 8 Ohm
Magnetically shielded 10 cm (4") fullrange speaker with high efficiency,

balanced frequency response.

Water-repellent cone and rubber gasket.

Especially suitable as control speaker in electronic devices and as speaker for public applications and public transport systems.

See also model R 10 SC Spezial - 8 Ohm with different terminals (6.3 x 0.8 mm (+) and 4.8 x 0.8 mm (-)).

Typical applications:
- Control speakers for electronic devices
- Ceiling- mounted speakers in railway carriages and busses
- Model construction


Technical Data:
Rated power 20 Watt
Maximum power 30 Watt
Nominal impedance 8 Ohm
Frequency response (-10 dB) 100 - 13000 Hz
Mean sound pressure level 90 dB (1W/1m)
Resonance frequency fs 160 Hz
Magnetic induction 0,95 Tesla
Magnetic flux 135 µ Weber
Height of front pole-plate 3 mm
Voice coil diameter 1,5 cm
Height of winding 0,4 cm

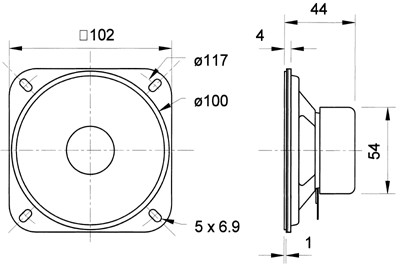

Cutout diameter 9,3 cm
Net weight 0,16 kg
D.C. resistance Rdc 7,4 Ohm
Mechanical Q factor Qms 7,25
Electrical Q factor Qes 3,34
Total Q factor Qts 2,29
Equivalent volume Vas 2,3 l
Effective piston area Sd 56 cm2
Dynamically moved mass Mms 2 g
Force factor Bxl 2,13 T · m
Inductance of the voice coil L 0,48 mH
