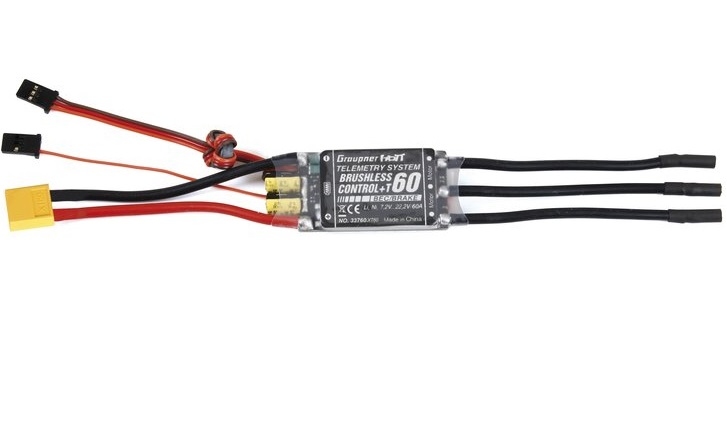

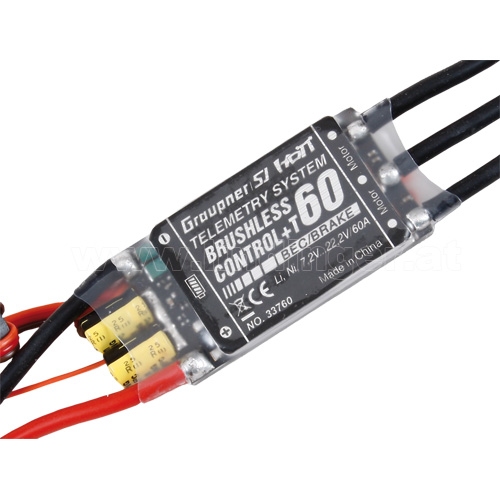

Graupner 33760.XT60 BRUSHLESS CONTROL + T60

Pakket 600AMP Regelaar met ingebouwde telemetrie en XT60 stekkers

8809403496456
Graupner 33760.XT60  BRUSHLESS CONTROL + T60
Graupner 33760.XT60  BRUSHLESS CONTROL + T60
Graupner 33760.XT60  BRUSHLESS CONTROL + T60
92.95 *Prijzen zijn inclusief btw
Fabrikant Graupner
Artikelcode33760.XT60
Zie details:
Op voorraad
Specification
Weight incl. leads: 67 g
Reversing: programmable
Continous current : 60 A
BEC : 5.0...8.0/3 V/A
Soft start : programmable
EMK brake: programmable
Pulse frequency : 32 kHz
Dimensions with capacitor : 70 x 31,5 x 10 mm
Battery plug connection: G3.5
Cell count, LiPo, Lilo: 2 ... 6
Cell count NiCd, NiMH: 6 ... 18
BEC current short-term: 10 A
Dimensions without capacitor : 55x 31.5 x 10 mm
Operating voltage : 5,5 ... 25 V

Internal HoTT telemetry functi
Graupner HoTT telemetry for simple controller programming
Graupner HoTT telemetry data and warnings for voltage, current, temperature, rpms, and capacity

Functions:
  • Synchronised, high-efficiency, and extremely powerful SBEC system withvoltage variable in 0.2-V steps in a range of 5.0 ... 8.0 V
  • Simple programming of transmissionpaths
  • Graupner HoTT telemetry for simple controller programming
  • Graupner HoTT telemetry data and warnings for voltage, current, temperature, rpms, and capacity
  • Synchronised, high-efficiency, and extremely powerful BEC-System
  • Simple programming of transmission paths


Programming options and telemetry:
  • Battery types NiCd/NiMH/LiIo/LiPo/LiFe
  • Cutoff voltage
  • Cutoff type soft/hard
  • Turning direction
  • Motor timing
  • Warm-up time
  • Starting torque
  • Brake on/off
  • Reverse mode for boat/car/ on/off
  • Rpm control mode for helicopter on/off
  • Readjustment speed in rpm control mode
  • Number of poles in motor
  • Gear reduction ratio
Telemetry warnings:
  • Low voltage threshold
  • Maximum current
  • Minimum rpms
  • Max. temperature
  • Max. capacity
Telemetry display:
  • Current voltage
  • Current and maximum voltage
  • Current and maximum rpms
  • Current and maximum temperature
  • Capacity
