GRAUPNER Servo DES 707-BB-MG 13-15kg nr. 7945

Envelop Houdkracht 27-30kg

4013389421713
GRAUPNER Servo DES 707-BB-MG  13-15kg  nr. 7945
44.95 *Prijzen zijn inclusief btw
Fabrikant Graupner
Artikelcode7945
De nieuwe DES serie (digital eco servos).

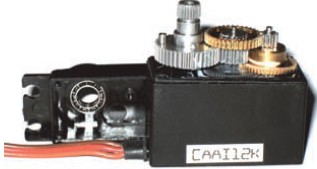

Metalen tandwielen, dubbele kogellagers.
Zeer betrouwbaar en zeer goede prijs/kwaliteitverhouding.
Lees ook het testbericht.
Op voorraad
Graupner Servo DES 707 BB, MG
Order number 7945


TIP: Het is beter om krachtige servo's apart en rechtstreeks van voeding te voorzien.
Dus NIET via de ontvanger of BEC van een regelaar.
Stroomverbruik van zulke servo's lopen van 1,5A tot wel 5A.
Losse krachtige BEC of speciale Y-kabels voeding zijn hiervoor te koop!

Specification
Operating voltage: 4.8 ... 6.0 V
No-load current drain approx. 8mA
Max. current drain at 4.8 V in mA approx. 1610
Max. current drain at 6.0 V in mA approx. 1950
Torque at 4.8 V (Ncm) approx. 133
Torque at 6.0 V (Ncm) approx. 150
Holding moment at 4.8 V (Ncm) approx. 271
Holding moment at 6.0 V (Ncm) approx. 303
Angular travel incl. trim approx. 2 x 45°
Transit speed at 4.8 V (sec. / 40°) approx. 0.17
Transit speed at 6.0 V (sec. / 40°) approx. 0.14
Weight g approx. 54
Gearbox** MG
Bearings* 2 x BB
Dimensions*** (L x W x H) mm approx. 40 x 19.5 x 39 mm
*PB --> Plain Bearing
**PG --> Plastic Gearbox
***Rounded up to 0.5 mm
PGCA --> Plastic Gearbox, Carbonite
MG --> Metal Gearbox

Description
DES servos (digital eco servos)
A new series of products to complement our existing range of digital servos.
These DES servos represent a product line which includes a suitable servo for every type of application,
covering a vast range of specifications: different case sizes, gearbox types, torque levels and transit speeds,
designed for any modeller from the beginnerto the competition pilot.
The range includes some fully sealed versions (case screws, case sections and output gear) for increased operational reliability of your models.
Servos with precision-made twin-ballraced gearboxes made of aluminium and other metals guarantee superbly accurate positional performance.
High-quality Amtel micro-controllers are used to process the control signals and provide good positional accuracy.

Suitable for RC model aircraft, RC cars and model boats
2 x ballraces
Metal gearbox
