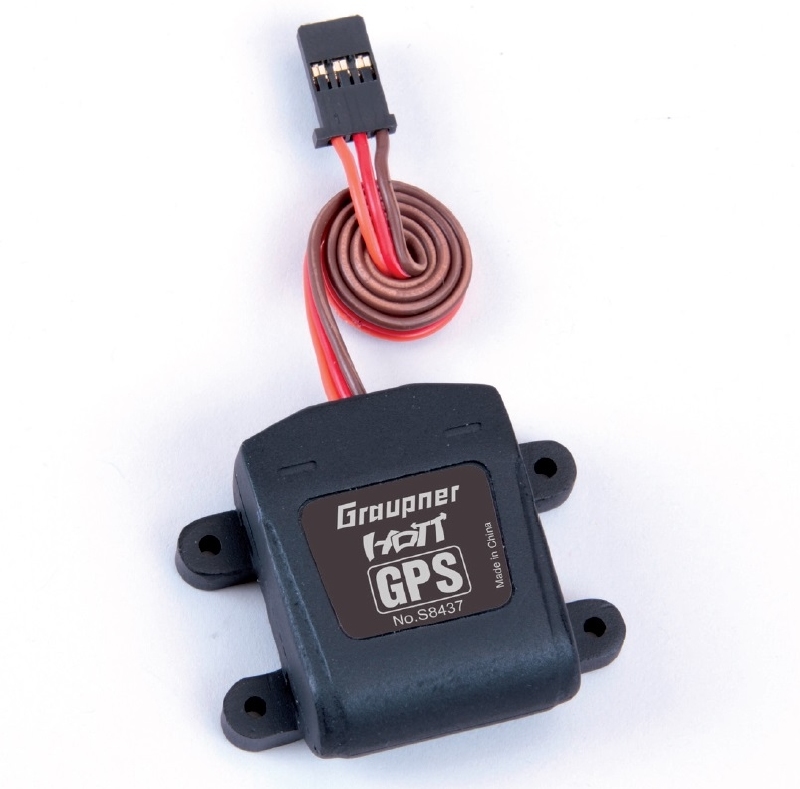

Graupner GPS / Vario ALPHA module HoTT s8437

Pakket

€ 114.95 *Prijzen zijn inclusief btw

Fabrikant: Graupner
Artikelcode: S8437

0 ster(ren) met 0 review(s) Schrijf een review

Op voorraad

Aantal

Neu:

Fast and precise GPS for multicopter, planes, cars and boats models.

Ublox 8 GPS receiver for GPS/GLONASS satellites.

Allows e. g. lap measurement through the Hott Viewer App.

Description

Vario with altitude signals and 5 climb/drop signals each
Additional warning thresholds for minimum altitude, maximum altitude, climb/drop speed in two stages
Altitude display and storage of minimum and maximum altitude
GPS with distance measurement, route measurement, speed display, display of flight direction and coordinates
Warning time can be set to: OFF, 5, 10, 15, 20, 25, 30 seconds, always
Warning repeat time can be set to: always, 1, 2, 3, 4, 5 minutes, once
The GPS/Vario sensor can be connected directly to the telemetry output of the receiver

Important Note when using the modules 33600, 33601, 33610, 33611 and 33620:
Do not carry out any programming work on the sensors while the model is flying,

otherwise there is a real risk that your model will fly out of control while you are not concentrating on it!
If your model is fitted with two or more receivers,

it is absolutely essential that you do not carry out programming work during a flight,

as this can alter the settings in the receivers to which no telemetry equipment is connected; in the worst case this could result in the model crashing!

For this reason always carry out programming on the ground, and check that only the receiver with connected sensors is powered on.

Vario technical data:

Altitude measurement: -500 ... +3000 m
Resolution: 0.1m
Sensitivity of Vario: 0.5 m / 3s, 1 m / 3 s, 0,5 m / s, 1 m / 1 s, 3 m / s per ton programmable
Calculation of mean: 4 - 40 measurements per measured value can be programmed
GPS + vario power consumption: 110 mA approx.

Specification

All-up weight, approx.: 20 g
Dimensions (LxWxH): 38 x 30 (45) x 16 mm
Operating voltage : 5 ... 8,4 V
