Castle Creations Field Link Programmer (CAR) 010-0063-00

Envelop

Castle Creations Field Link Programmer (CAR) 010-0063-00
Castle Creations Field Link Programmer (CAR) 010-0063-00
43.90 *Prijzen zijn inclusief btw
ArtikelcodeCC-010-0063-00
899598001946
0 ster(ren) met 0 review(s) Schrijf een review
Op voorraad

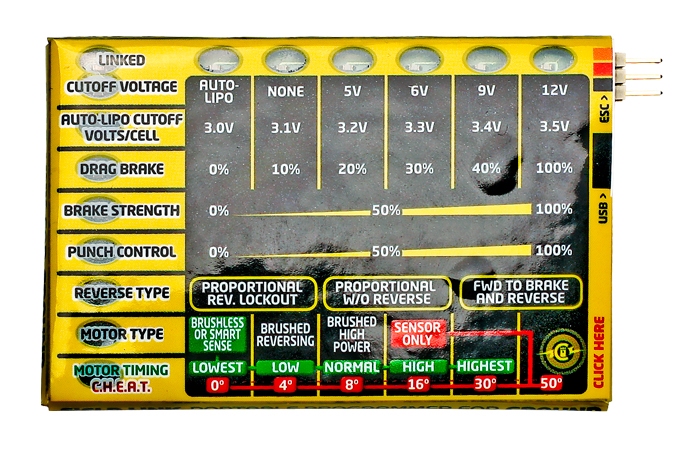

Castle Creations Field Link Portable Programmer (Flying)

Programs your controllers without a computer (mostly). Works as a standard Castle Link USB adapter with your computer.

Sometimes you need to make a change in the programming of a Castle controller and you just don't happen to have a laptop in your man purse. What to do? There's always the old stick programming method that we all love to hate. Yes it works, but... there has to be a better way. Now there is Field Link!

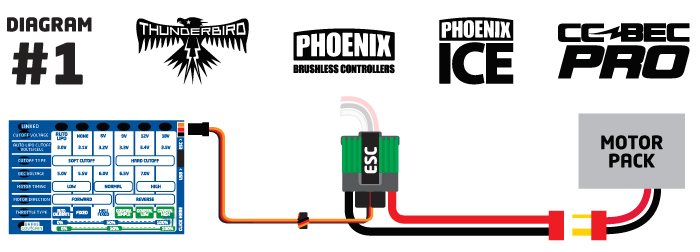

Field Link allows you to modify the most commonly used settings in your Castle controller all at the touch of a single button. No computer needed (mostly). Simply connect the Field Link to the throttle lead of the controller and power the pair as described below. Click the button to scroll through and change the indicated settings. Can't get any easier!

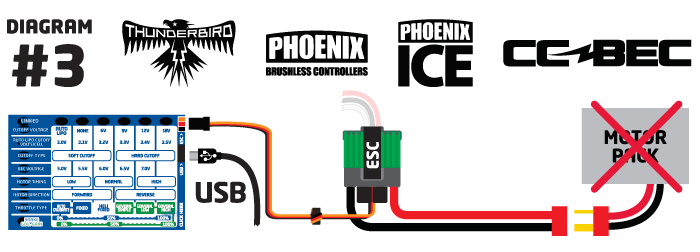

But wait! Act now and we'll throw in Castle Link USB compatibility too! That's right, these cards are also Castle Links that give you access to the entire world of Castle tuning functionality.

Does it work without a computer or not?
Yes, mostly. The card is programmed to work with the latest controllers and software when it leaves the Castle workshop. It will work with all Castle Link compatible controllers running software released since 2007. Go to www.castlecreations.com for more details. There is always a chance that we will upgrade the controller firmware down the road and that upgrade may require that the Field Link be upgraded too. That is easily accomplished, but it will require a computer running the latest version of Castle Link that is always available for free on the Castle website. We’ll also be happy to upgrade it for you if you drop it in the mail to us.

Click on the card that you need below to see the complete details. You see, there are actually two Field Link cards, as no car guy wants to set heli governor gain, and no glider guy cares about forward reverse lockout. So jump to the card you are interested in to see the details below.

Specifcation

. Item Number: 010-0063-01
. Length: 2.2in (56mm)
. Width: 3.38in (86mm)
. Height: 0.24in (6mm)
. Settings:

1. Cutoff voltage
2. Auto LiPo volts per cell (3.0, 3.1, 3.2, 3.3, 3.4, 3.5)
3. Low voltage cutoff type
4. BEC voltage setting*
5. Motor timing**
6. Motor direction
7. Throttle type**
8. Brake
9. Governor gain**

Compatibility

. Thunderbird ESCs
. Phoenix ESCs
. Phoenix HV ESCs
. Phoenix Ice ESCs
. Phoenix Ice HV ESCs
. CC BEC Switching Regulators
. CC BEC Pro Switching Regulators
