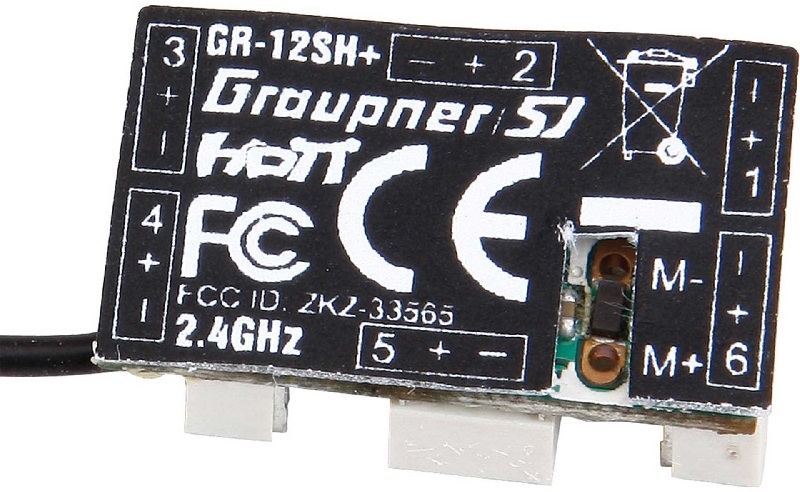

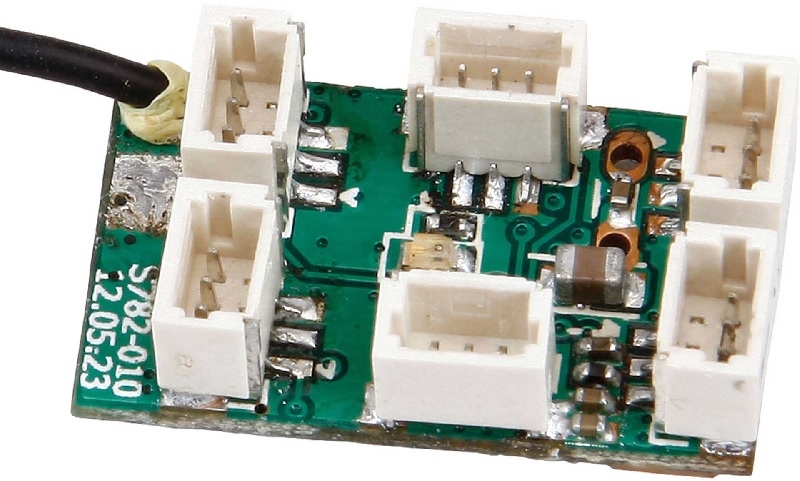

Graupner 33565 GR-12SH+ HoTT micro ontvanger

Envelop Super klein, ZH connectors

Graupner 33565 GR-12SH+ HoTT micro ontvanger
Graupner 33565 GR-12SH+ HoTT micro ontvanger
Graupner 33565 GR-12SH+ HoTT micro ontvanger
49.95 *Prijzen zijn inclusief btw
Artikelcode33565
4013389479295
0 ster(ren) met 0 review(s) Schrijf een review
De lichtste 6 ch indoor ontvanger.
LEVERTIJD 2-7 werkdagen In backorder bestellen!
Specification
Temperature range : - 15...+70 °C
Aerial length: 1x Draht 30 mm
All-up weight, approx.: 1,5 g
Frequency : 2400 ... 2483.5 MHz
Range approx. : 800 m
Dimensions (LxWxH): 20 x 12 x 7 mm
Modulation: 2.4 GHz FHSS
Charging rate : 20 mA
Operating voltage : (2,5) 3,6 ... 8,4 V


Description
GRAUPNER HOTT Technology. With the GRAUPNER HOTT 2.4-GHz technology, the receiver has a new hopping telemetry transmission high-frequency unit with state-of-the-art components and software.
The use of up to 75 channels ensures extreme operating reliability and immunity to external interference.
The receiver operates even at voltages of about 2.5 volts. Thus, even when the batteries are getting weak ' e.g. atthe end of flying time ' it is resistant to voltage drops due to high servo currents.
Compared to the previous receivers, the sizes and weights have been reduced; and the receiver input sensitivity and thus the range have been increased further.


Characteristics:
  • Extremely small and light
  • SH-connector
  • 6 channels or up to 8 channels with digital HoTT buzzer signals SUMH
  • The first three channels are transmitted at an interval of 0.1 ms; channels 4-6 after half the period also at intervals of 0.1 ms, so that control is as precise as possible, and the power peaks of the servos nevertheless do not occur exactly simultaneously.
  • Periods 10 or 20 ms programmable
  • 5 free mixers
  • Internal voltage measurement or external voltage measurement up to 25.2 V with a simple voltage divider on channel 5.
  • Motor connection for channel 1 for brushed motors with a maximum continuous power consumption of 2 A.
