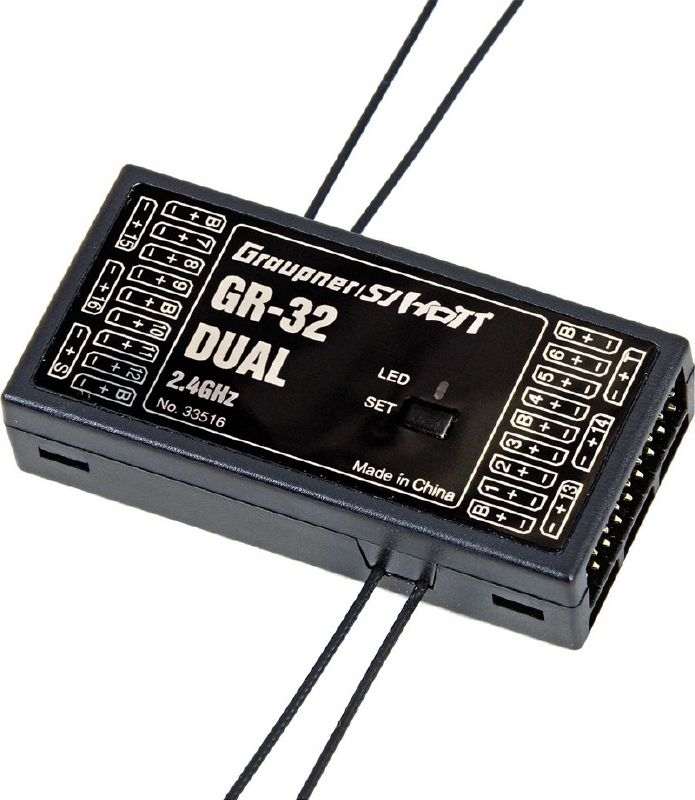

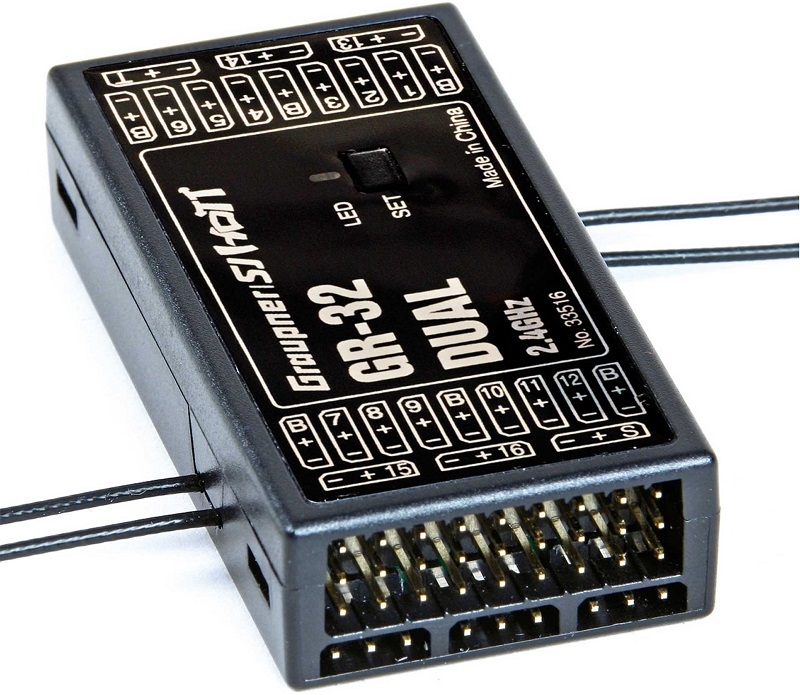

Graupner GR-32 HOTT 16 channel ontvanger nr. 33516


Graupner GR-32 HOTT 16 channel ontvanger nr. 33516
Graupner GR-32 HOTT 16 channel ontvanger nr. 33516
Graupner GR-32 HOTT 16 channel ontvanger nr. 33516
Graupner GR-32 HOTT 16 channel ontvanger nr. 33516
143.99 *Prijzen zijn inclusief btw
Fabrikant Graupner
0 ster(ren) met 0 review(s) Schrijf een review
LEVERTIJD 5-10 werkdagen
The GR-32 receiver can control
With the GRAUPNER HoTT 2.4 GHz technology, the receiver has a new hopping telemetry transmission high-frequency unit with state-of-the-art components and the latest software.
A hardware antenna diversity system always switches to the better antenna signal and for transmission always uses the antenna that was last used for receiving.
This ensures that the back channel data are always sent via the better-positioned antenna.
Without additional sensor systems, the parameters receiver voltage and temperature, as well as signal strength are transmitted.
Connector for one telemetry sensor and for the sum signal input or output.
The receiver does have 6 power inputs for strong servos.

  • The use of up to 75 channels ensures extreme operating reliability and immunity to external interference.
  • The broad reception voltagerange of 3.6 V - 8.4 V (functional to 2.5 V) ensures full functionality even when voltage fluctuates.
  • Two LEDs signal operating status.
  • The sizes and weights have been reduced.
  • Receiver input sensitivity and thus the range have been increased further.

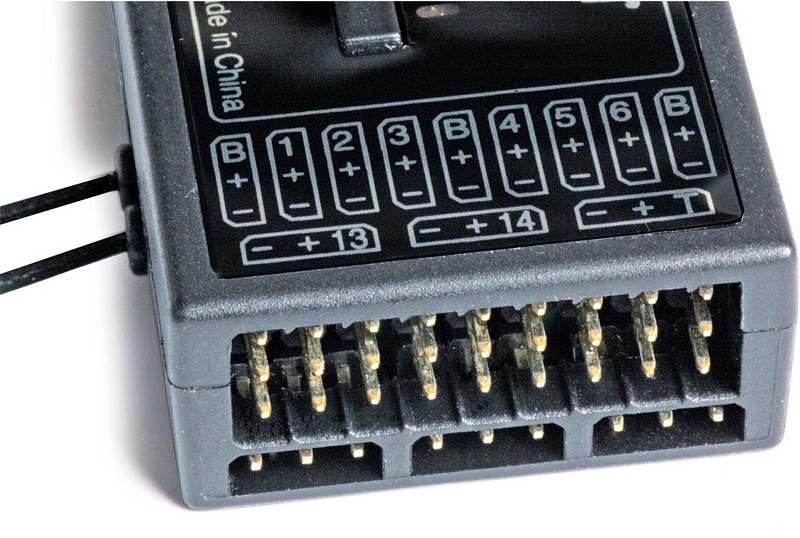

  • Servo connections in the front panel.
  • Failsafe, hold, OFF, and standard (channel 1 failsafe; all others hold) programmable.

Functions with SMART-BOX:
  • 5 mixers programmable
  • Linear, degressive, and exponential programming of servo curves
  • SUM signal programmable for input or output on connector S
  • Limitation and reversal of servo travels also possible in receiver
  • Failsafe, hold, and OFF programmable individually for the servo channels
  • Warning thresholds programmable for undervoltage, excess temperature, and low temperature
  • Servo test function

Temperature range : -15 ... 70 °C
Aerial length: 4 x Draht 145 (Antenne 30) mm
All-up weight, approx.: 24 g
Frequency : 2400 ... 2483,5 MHz
Range approx. : 5000 m
Dimensions (LxWxH): 63 x 30 x 14 mm
Modulation: 2.4 GHz FHSS
Charging rate : 140 mA
