Graupner GR-24 HOTT 12 channel ontvanger nr. 33512


Graupner GR-24 HOTT 12 channel ontvanger nr. 33512
Graupner GR-24 HOTT 12 channel ontvanger nr. 33512
112.99 *Prijzen zijn inclusief btw
Fabrikant Graupner
0 ster(ren) met 0 review(s) Schrijf een review
LEVERTIJD 5-10 werkdagen In backorder bestellen!

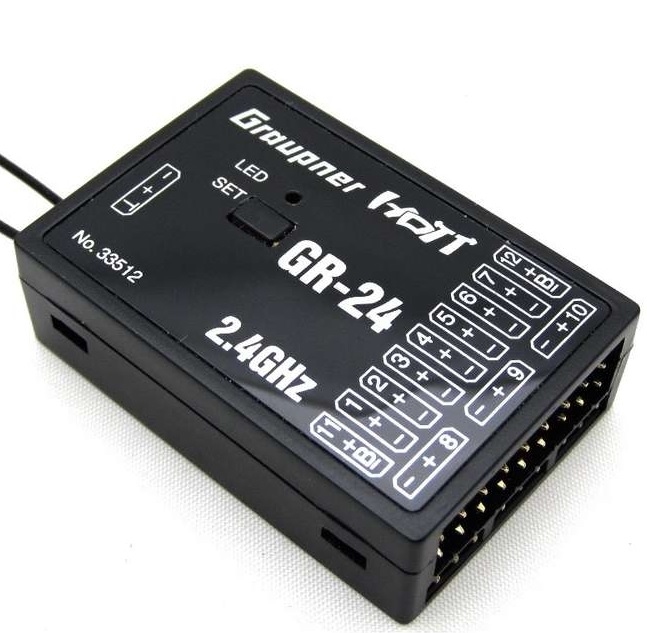

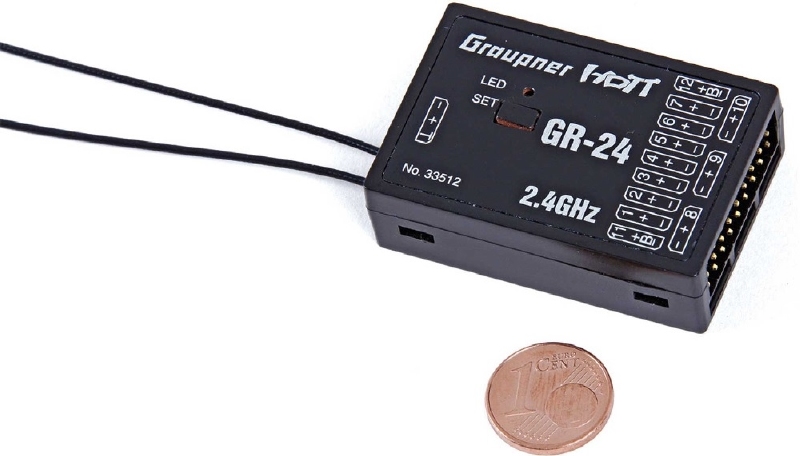

Graupner GR-24, 12-Channel 2.4GHz HoTT Receiver


Reliable communication with Graupner HoTT radios is no issue for the Graupner GR-24 12ch 2.4 GHz receiver, suitable for any type of application including large scale warbirds and large scale sailplanes.
You will benefit from constant, real-time information monitoring of receiver voltage, receiver temperature and signal strength that is transmitted back to the radio without the need for additional sensors.

The dual, full range 2.4 GHz diversity antenna system continually hops to the better antenna signal, utilizing the last antenna used for receiving telemetry downlink transmissions.
This ensures that the return channel data is transmitted via the better positioned antenna, assuring you that telemetry information is always available for a safe and secure flight.


Up to 75 channel hopping for extreme operating reliability and immunity to external interference
Broad voltage ranges of 3.6 V - 8.4 V (functional to 2.5 V) ensures safe operation even during voltage fluctuation
Dual power connections
Wireless setup and access technology
LED to show operating status
Increased receiver input sensitivity providing a vertical range of up to 4000 meters
Easy, front access servo connections
Fail-safe, hold, OFF and standard programmable directly from radio or receiver (channel 1: fail-safe; all others: hold)
Programmable warning thresholds for low voltage, low or high temperatures
Real-time wireless flight data recording
Ultra-fast re-binding with HoTT radio
Digital output (SUMD, SUMDV3, SUMDIN, SUMO, SUMI, SBUS) at input or output connector for flight controllers like V-Stabi, Microbeast, Brain, Bavarian Demone, 3Digi, Naze, et al
Selectable frame rates between 10ms to 20ms.
Compact and lightweight


Channel: 12 channels
Frequency: 2400 - 2483.5 MHz
Modulation: 2.4GHz FHSS
Temperature Range: 5 to 158° F / -15 to 70° C
Operating Voltage: (2.5) 3.6 - 8.4V
Current Consumption: 70.0 mA
Antennas:  x2 5.71 in / 145 mm
Range (approx.): 13,123 ft (2.48 mi) / 4000 m
Size: 1.81 x 1.22 x 0.55 in / 46 x 31 x 14 mm
Weight Approx:  0.56 oz / 16 g
