Graupner GR-12L HOTT 12-32 ch met SUMD+ telemetrie S1051

Pakket Special voor SUMD of Copter Flight Controls or Flybarless systems gebruikers

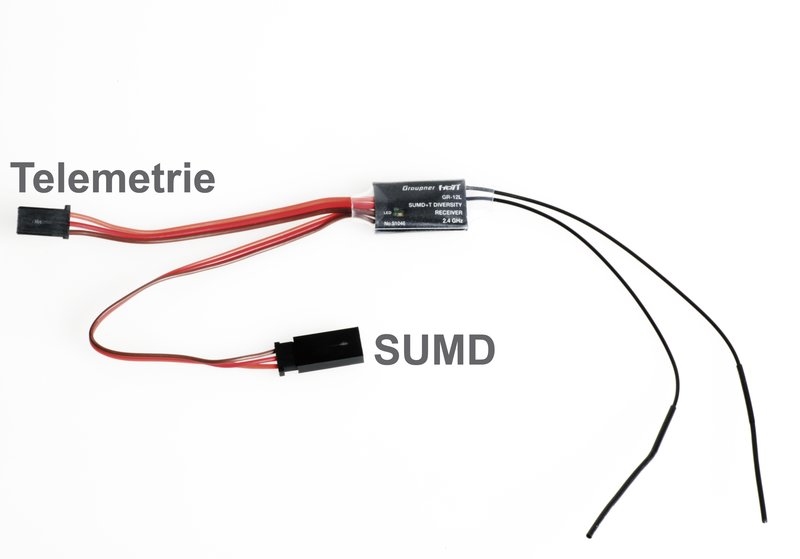

Graupner GR-12L HOTT 12-32 ch  met SUMD+ telemetrie S1051
Graupner GR-12L HOTT 12-32 ch  met SUMD+ telemetrie S1051
59.95 *Prijzen zijn inclusief btw
Fabrikant Graupner
0 ster(ren) met 0 review(s) Schrijf een review
Op voorraad
The GR-12L receiver can control 12 or 16 or 32 channels
The Graupner receiver GR-12L has the latest Graupner HoTT 2.4 GHz technology and the latest components and software.

Antenna diversity.

The HoTT technology uses up to 75 channels. This ensures extreme operating safety and insensitivity to external interference.

Withoutadditional sensors, receiver voltage, temperature and signal strength are transmitted. Failsafe and Hold are programmable. The input sensitivity of the receiver and thereby the range have been significantly increased.

The small and extremely light receiver is used with SUMD or SBUS or SP2048 of Copter Flight Controls, Heli Flybarless or servo expanders.

The RSSI value can be output at CH8, CH12 or CH16 with SUMD or SBUS or SP2048.

3 additional solder points for CH2-4 for servo output signals or for switch signals for LED drive or to switch transistors (0V or 3,3V max. 4mA).

The GR-12L receiver has high reliability thanks to its wide voltage range of 3.6 V - 8.4 V (functional to 2.5 V), even in the case of voltage fluctuations.

The HoTT receiver clearly shows its operating status at any time through a red LED.

In our Graupner Onlineshop you will find the right accessories and spare partsfor model building - the right remote controls, chargers, servos, NiMH and LiPo batteries.

Product features

The use of up to 75 channels ensures extreme operating safety and is insensitive to external interference
Wide receiver voltage range from 3.6 V - 8.4 V (functional to 2.5 V)
The red LED indicates the operating state
The size and the weight have been reduced
The receiver sensitivity and the range were further increased
Failsafe, Hold programmable


Telemetry connection
SUMD signal for 12 or 16 channels (e.g. for V-stabilisers, Microbeast and copter FCs, like Betaflight FCs or Raceflight FCs)
SUM3-Signal with 32 channels and 64 digital switches (with mz-32)
Width [mm]: 15 mm
Height [mm]: 4 mm
Temperature range [°C] : -15...+70 °C
Aerial length [mm]: 2 x Wire 145 (Antenna 30) mm
All-up weight [g]: 4 g
Frequency : 2400...2483.5 MHz
Range approx. [m] : ~3000 m
Overall length [mm]: 25 mm
Dimensions [LxWxH in mm]: 25 x 15 x 4 mm
Modulation: 2.4 GHz FHSS
Current consumption [mA]: 70 mA
Operating voltage neutral [V] : 4...10 V
Gyro: No
Channels: 8 / 12 / 16
Telemetry capable: Yes
Number of antennas: 2

EAN: 8809403498191
